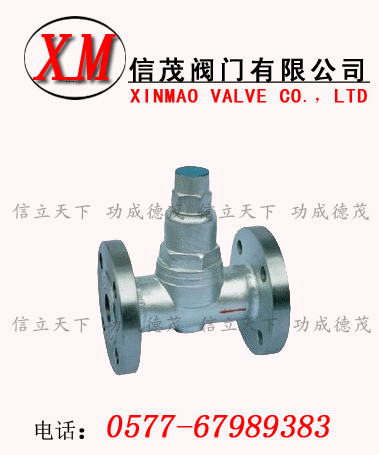

可调双金属片疏水阀-CS47H/CS17H/CS67H可调双金属片疏水阀结构独特、性能优良、排水量大、漏汽温度可调节，过冷度在2℃左右，可能排除大量冷空气和其它不凝汽体，不会产生汽堵现象。可更换内件，易于维修和调整。
可调双金属片疏水阀-CS47H/CS17H/CS67H可调双金属片疏水阀主要性能规范
|
型号Type/项目Item
|
CS17H-16C
CS47H-16C
CS67H-16C
|
CS17H-25
CS47H-25
CS67H-25
|
CS17H-40
CS47H-40
CS67H-40
|
单位
Unit
|
|
公称压力
Nominal Pressure
|
1.6
|
2.5
|
4.0
|
Mpa
|
|
壳体试验压力
Shell Test Pressure
|
2.4
|
3.8
|
6.0
|
|
最高工作压力
Max
|
1.6
|
2.5
|
4.0
|
|
最高工作温度Max
Works Temperature
|
203
|
220
|
247
|
℃
|
|
最高允许温度Max
Vouchsafement Temperature
|
425
|
425
|
425
|
|
工作介质
Working Medium
|
蒸汽、凝结水Stemam
|
可调双金属片疏水阀-CS47H/CS17H/CS67H可调双金属片疏水阀主要零件材料
|
型号Type/项目Item
|
CS 17 H、CS47H、CS 67 H 16 C、25C、40 C
|
|
阀体Body
|
碳钢Carbon Steel
|
|
阀盖Donner
|
|
阀芯
|
不锈钢Atainless Steel
|
|
阀座Seat
|
不锈钢Atainless Steel
|
|
热敏元件
|
热双金属片
|
|
过滤器Percolator
|
不锈钢Atainless Steel
|
可调双金属片疏水阀-CS47H/CS17H/CS67H可调双金属片疏水阀主要外型及连接尺寸
|
型号
Type
|
DN
|
螺纹连接
|
承接焊连接
|
法兰连接
|
|
RC
|
L
|
H
|
W
|
L
|
H
|
W
|
d’
|
T
|
L
|
H
|
D
|
K
|
d
|
C
|
F
|
N-φ
|
|
(mm)
|
(mm)
|
(mm)
|
|
CS17H-16C
CS47H-16C
CS67H-16C
|
15
|
1/2
|
100
|
92
|
82
|
100
|
92
|
82
|
22
|
12
|
150
|
92
|
95
|
65
|
45
|
14
|
2
|
4-14
|
|
20
|
3/4
|
100
|
92
|
82
|
100
|
92
|
82
|
27
|
12
|
150
|
92
|
105
|
75
|
55
|
14
|
2
|
4-14
|
|
25
|
1
|
100
|
92
|
82
|
100
|
92
|
82
|
34
|
12
|
160
|
92
|
115
|
85
|
65
|
14
|
2
|
4-14
|
|
32
|
11/4
|
165
|
140
|
115
|
165
|
140
|
115
|
42
|
13
|
200
|
140
|
135
|
100
|
78
|
16
|
2
|
4-18
|
|
40
|
11/2
|
165
|
140
|
115
|
165
|
140
|
115
|
48
|
13
|
200
|
140
|
145
|
110
|
85
|
16
|
3
|
4-18
|
|
50
|
2
|
175
|
140
|
115
|
175
|
140
|
115
|
61
|
14
|
230
|
140
|
160
|
125
|
100
|
16
|
3
|
4-18
|
|
CS17H-25
CS47H-25
CS67H-25
|
15
|
1/2
|
100
|
92
|
82
|
100
|
92
|
82
|
22
|
12
|
150
|
92
|
95
|
65
|
45
|
14
|
2
|
4-14
|
|
20
|
3/4
|
100
|
92
|
82
|
100
|
92
|
82
|
27
|
12
|
150
|
92
|
105
|
75
|
55
|
14
|
2
|
4-14
|
|
25
|
1
|
100
|
92
|
82
|
100
|
92
|
82
|
34
|
12
|
160
|
92
|
115
|
85
|
65
|
14
|
2
|
4-14
|
|
32
|
11/4
|
165
|
140
|
115
|
165
|
140
|
115
|
42
|
13
|
200
|
140
|
135
|
100
|
78
|
16
|
2
|
4-18
|
|
40
|
11/2
|
165
|
140
|
115
|
165
|
140
|
115
|
48
|
13
|
230
|
140
|
145
|
110
|
85
|
16
|
3
|
4-18
|
|
50
|
2
|
175
|
140
|
115
|
175
|
140
|
115
|
61
|
14
|
230
|
140
|
160
|
125
|
100
|
16
|
3
|
4-18
|
|
CS17H-40
CS47H-40
CS67H-40
|
15
|
1/2
|
100
|
92
|
82
|
100
|
92
|
82
|
22
|
12
|
250
|
92
|
95
|
65
|
45
|
14
|
2
|
4-14
|
|
20
|
3/4
|
100
|
92
|
82
|
100
|
92
|
82
|
27
|
12
|
150
|
92
|
105
|
75
|
55
|
14
|
2
|
4-14
|
|
25
|
1
|
100
|
92
|
82
|
100
|
92
|
82
|
34
|
12
|
160
|
92
|
115
|
85
|
65
|
14
|
2
|
4-14
|
|
32
|
11/4
|
165
|
140
|
115
|
165
|
140
|
115
|
42
|
13
|
200
|
140
|
135
|
100
|
78
|
16
|
2
|
4-18
|
|
40
|
11/2
|
165
|
140
|
115
|
165
|
140
|
115
|
48
|
13
|
200
|
140
|
145
|
110
|
85
|
16
|
3
|
4-18
|
|
50
|
2
|
175
|
140
|
115
|
175
|
140
|
115
|
61
|
14
|
230
|
140
|
160
|
125
|
100
|
16
|
3
|
4-18
|
