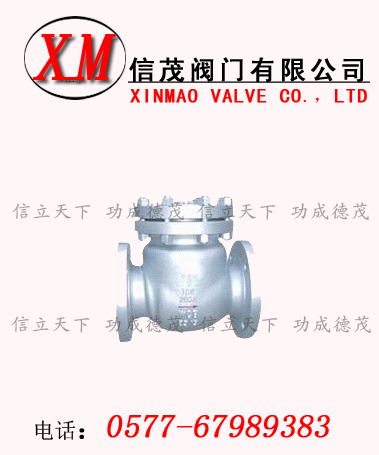

日标旋启式止回阀-JIS日标旋启式止回阀
|
结构长度 Face To Face
|
法兰尺寸
Flange Dimension
|
压力-温度
Pressure Temperature Lating
|
试验-检验
Inspection and Test
|
|
JIS B2002
|
JIS B2212 B2214
|
JIS B2074 B2084
|
JIS B2003
|
10K 规格主要尺寸和重量 Size Main Dimensions and Weight J41H (Y W F)
日标旋启式止回阀-JIS日标旋启式止回阀标准 STD
|
设计与制造 Design and Manufacture
|
结构长度 Face To Face
|
法兰尺寸
Flange Dimension
|
压力-温度
Pressure Temperature Lating
|
试验-检验
Inspection and Test
|
|
JIS B2074 B2084
|
JIS B2002
|
JIS B2212 B2214
|
JIS B2074 B2084
|
JIS B2003
|
日标旋启式止回阀-JIS日标旋启式止回阀10K 规格主要尺寸和重量 Size Main Dimensions and Weight J41H (Y W F)
|
DN mm
|
in
|
L
|
D
|
D1
|
D2
|
b
|
n-φd
|
H
|
D0
|
W(kg)
|
|
50
|
2
|
203
|
155
|
120
|
100
|
16
|
4-19
|
165
|
165
|
17
|
|
65
|
21/2
|
216
|
175
|
140
|
120
|
18
|
4-19
|
175
|
175
|
25
|
|
80
|
3
|
241
|
185
|
150
|
130
|
18
|
8-19
|
190
|
190
|
29
|
|
100
|
4
|
292
|
210
|
175
|
155
|
18
|
8-19
|
215
|
215
|
50
|
|
150
|
6
|
406
|
280
|
240
|
215
|
22
|
8-23
|
265
|
265
|
85
|
|
200
|
8
|
495
|
330
|
290
|
265
|
22
|
12-23
|
320
|
320
|
150
|
|
250
|
10
|
622
|
400
|
355
|
325
|
24
|
12-25
|
365
|
365
|
240
|
|
300
|
12
|
698
|
445
|
400
|
370
|
24
|
16-25
|
415
|
415
|
35
|
|
350
|
14
|
787
|
490
|
445
|
415
|
26
|
16-25
|
460
|
460
|
460
|
|
400
|
16
|
864
|
560
|
510
|
475
|
28
|
|
|
|
|
